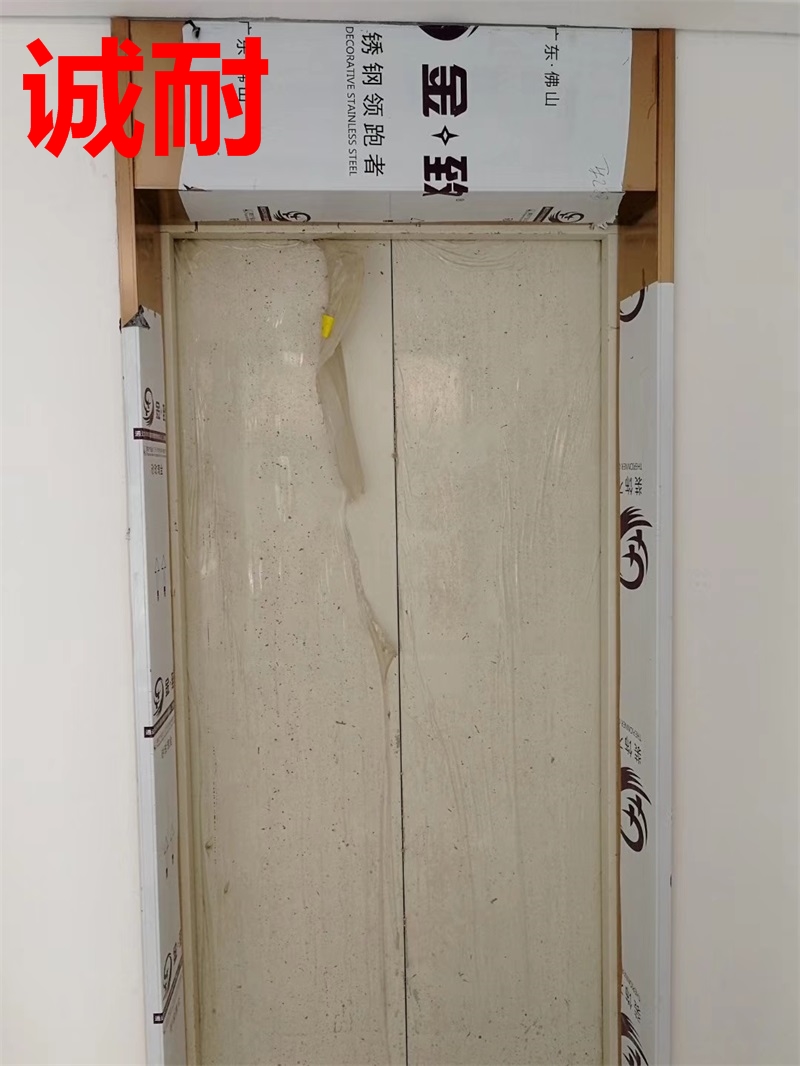

There are various products requiring deep processing in the stainless steel elevator door pocket decoration project, such as stainless steel, aluminum products, glass, etc. here, we analyze the problems of products requiring deep processing, and look for suitable installation nodes. We hope to provide a deeper reference for designers and installation guidance for the construction department. The installation process and nodes of Henan stainless steel elevator door pocket, the practice of direct butt joint door pocket, and the general precautions are as follows:

1、材料厚度**1.2厚（實際厚度不得小于1.08）。

1. Material thickness * * 1.2 thick (actual thickness shall not be less than 1.08).

2、注意用豎料來收口門頭橫料。

2. Pay attention to use vertical materials to close the horizontal materials of the door head.

3、注意制作基層一定要小于門套包邊尺寸5mm左右，**足夠的空間安裝和打膠。

3. Note that the base course must be about 5mm smaller than the edge wrapping size of the door pocket, * * enough space for installation and gluing.

4、門頭板寬度要略小于豎料寬度1-2毫米，收口才美觀。

4. The width of the door head plate should be slightly less than the vertical material width by 1-2mm, and the closing is beautiful.

5、一般門頭板和立面包板對接處的陰角處不建議用膠水收口，這樣既美觀又能檢驗門套安裝質量。

5. Generally, it is not recommended to close the internal corner of the butt joint between the door head plate and the facade cladding plate with glue, which is both beautiful and can test the installation quality of the door pocket.

b：普通的45°拼接門套做法，常規注意事項如下：

b: General precautions for common 45 ° splicing door pocket are as follows:

1、材料厚度**1.2厚（實際厚度不得小于1.08）。注意對角處不能有錯位，焊接點一定要處理在隱蔽位置。

1. Material thickness * * 1.2 thick (actual thickness shall not be less than 1.08). Note that there shall be no dislocation at the diagonal, and the welding points must be treated in the concealed position.

2、注意制作基層一定要小于門套包邊尺寸5mm左右，**足夠的空間安裝和打膠。

2. Note that the base course must be about 5mm smaller than the edge wrapping size of the door pocket, * * enough space for installation and gluing.

3、一般門頭板和立面包板對接處的陰角處不建議用膠水收口，這樣既美觀又能檢驗門套安裝質量。

3. Generally, it is not recommended to close the internal corner of the butt joint between the door head plate and the facade cladding plate with glue, which is both beautiful and can test the installation quality of the door pocket.

安裝質量粗劣，陰角打膠遮蓋瑕疵，不建議使用

The installation quality is poor, and the internal corners are glued to cover the defects. It is not recommended to use

c：常規止口門套做法如左下圖，這類做法的弊端：

c: The practice of conventional seam door pocket is shown in the following figure on the left. The disadvantages of such practice are as follows:

1、基層不準確時很難卡上去；尺寸不可調節，對于門洞基層有變化時無法改動門套尺寸。

1. It is difficult to get stuck when the base course is inaccurate; The size cannot be adjusted, and the door pocket size cannot be changed when the door opening base is changed.

2、加工復雜，尺寸較大時運輸會有變形風險。

2. When the processing is complex and the size is large, there will be deformation risk during transportation.
